Raymond Day
PostPosted: Sat Dec 13, 2008 11:49 am
Offline

Joined: Mon Sep 11, 2006 10:38 am
Posts: 231
Location: Belleville MI
I wanted to test this out for a wile to make sure. But it's so slow senting files to it. Seems like getting files is good.

I started my timming it on a 178 MB video file sending to it over my LAN. It took just over 30 min!

Rebooted it and did one more 178 MB video file and same takes a long time.

Will the log show what's wrong or how can this be fixed?

Here is a copy of it's "Device Details:" on it's network.htm page.

Code:
eth0: Unknown PHY transceiver found at address 1.
eth0: Using transceiver found at address 1 as default
eth0: SiS 900 PCI Fast Ethernet at 0x2000, IRQ 19, 00:1c:c0:56:93:92.
eth0 Link encap:Ethernet HWaddr 00:1C:C0:56:93:92
inet addr:192.168.2.185 Bcast:192.168.2.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:116817 errors:0 dropped:0 overruns:0 frame:0
TX packets:106335 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:166034768 (158.3 MiB) TX bytes:7618229 (7.2 MiB)
Interrupt:19 Base address:0x2000


Maybe that will help to know what's wrong.

-Raymond Day
Top
 Profile

robrub
PostPosted: Sat Dec 13, 2008 1:53 pm
Offline

Joined: Sat Jun 02, 2007 2:45 am
Posts: 485
Location: France
Some ideas to test:

Have a look in syslog to see if IRQ is not used by something else.

Try changing the place (PCI connection) of the lan card.

Try another lan card.

How are the computers connected to the LAN (switch, cross cable, ... ?)

Regards
Top
 Profile

Raymond Day
PostPosted: Sun Dec 14, 2008 7:55 am
Offline

Joined: Mon Sep 11, 2006 10:38 am
Posts: 231
Location: Belleville MI
It's on the built in Ethernet. 10/100. I had Ubuntu server running on it before NASlite because before the last upgrade NASLite did not work on this motherboard. A intel D201GLY2 Mini-ITX. No Problums with it running Ubuntu server. It was fast send or getting data.

It's all set up just like it was too. To install the new NASlite-2. I tested with another hard drive. The hard drive is on the out side of the Mini-ITX case with a SATA cable. So it was easy. It worked so I installed NASLite on the main drive the Ubuntu was on. Used a USB CD rom drive to install it. So I never unpluged any thing but the SATA cable. So it's the same set up.

I am looking at the log. Will just paste parts in here I think that my help.

Code:
Dec 13 14:43:38 user.warn kernel: PCI: Probing PCI hardware (bus 00)
Dec 13 14:43:38 user.err kernel: PCI: Unable to handle 64-bit address space for
Dec 13 14:43:38 user.debug kernel: ACPI: PCI Interrupt Routing Table [\_SB_.PCI0._PRT]
Dec 13 14:43:38 user.debug kernel: ACPI: PCI Interrupt Routing Table [\_SB_.PCI0.P0P1._PRT]
Dec 13 14:43:38 user.warn kernel: ACPI: PCI Interrupt Link [LNKA] (IRQs 3 4 5 7 *10 11 12 14


Code:
Dec 13 14:43:38 user.debug kernel: . : IO APIC version: 0014
Dec 13 14:43:38 user.warn kernel: An unexpected IO-APIC was found. If this kernel release is less than
Dec 13 14:43:38 user.warn kernel: three months old please report this to linux-smp@vger.kernel.org
Dec 13 14:43:38 user.debug kernel: register #02: 04000000
Dec 13 14:43:38 user.debug kernel: . : arbitration: 04
Dec 13 14:43:38 user.debug kernel: IRQ redirection table:


Code:
Dec 13 14:43:38 user.warn kernel: RAMDISK driver initialized: 16 RAM disks of 8192K size 1024 blocksize
Dec 13 14:43:38 user.info kernel: loop: loaded (max 8 devices)
Dec 13 14:43:38 user.info kernel: Intel(R) PRO/1000 Network Driver - version 7.3.20-k4
Dec 13 14:43:38 user.info kernel: Copyright (c) 1999-2006 Intel Corporation.
Dec 13 14:43:38 user.info kernel: dgrs: SW=$Id: dgrs.c,v 1.13 2000/06/06 04:07:00 rick Exp $ FW=Build 550 11/16/96 03:45:15
Dec 13 14:43:38 user.warn kernel: FW Version=$Version$
Dec 13 14:43:38 user.info kernel: pcnet32.c:v1.30h 06.24.2004 tsbogend@alpha.franken.de
Dec 13 14:43:38 user.info kernel: ThunderLAN driver v1.15
Dec 13 14:43:38 user.info kernel: TLAN: 0 devices installed, PCI: 0 EISA: 0
Dec 13 14:43:38 user.info kernel: sis900.c: v1.08.07 11/02/2003
Dec 13 14:43:38 user.info kernel: eth0: Unknown PHY transceiver found at address 1.
Dec 13 14:43:38 user.info kernel: eth0: Using transceiver found at address 1 as default
Dec 13 14:43:38 user.info kernel: eth0: SiS 900 PCI Fast Ethernet at 0x2000, IRQ 19, 00:1c:c0:56:93:92.
Dec 13 14:43:38 user.info kernel: dmfe: Davicom DM9xxx net driver, version 1.36.4 (2002-01-17)
Dec 13 14:43:38 user.info kernel: ns83820.c: National Semiconductor DP83820 10/100/1000 driver.
Dec 13 14:43:38 user.warn kernel: sk98lin: No adapter found.
Dec 13 14:43:38 user.info kernel: forcedeth.c: Reverse Engineered nForce ethernet driver. Version 0.50.


I hope this helps. Maybe it could be some BIOS setting?

-Raymond Day
Top
 Profile

Tony
PostPosted: Sun Dec 14, 2008 11:15 am
Offline
Site Admin

Joined: Tue Jul 13, 2004 4:11 pm
Posts: 1771
Location: Server Elements
Try and disable PnP in the BIOS to allow redistribution of IRQs. 30min for 170M file is way off so something is not set right. You may also want to disable unnecessary items just to make sure there are no conflicts. Shouldn't be with the new kernel, but then again, hardware comes in many flavors.
Top
 Profile

Raymond Day
PostPosted: Sun Dec 14, 2008 2:55 pm
Offline

Joined: Mon Sep 11, 2006 10:38 am
Posts: 231
Location: Belleville MI
I could not find any plug and play in the BIOS. But I turned all off I could. All ready have Audio off. Only thing I left on was Ethernet and USB. I my not need the USB on.

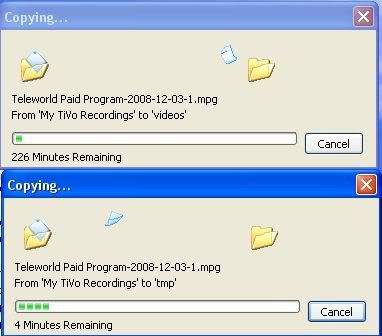

I don't know what else to change in the BIOS. I tested out about a 170M mpg video started to send it to my NASLite-2. Then the same video file I started to send it to a Ubuntu server I have to test them. Can see how it could be way faster with this one pic.


I don't know. Maybe a newer linux kernel. When I do a uname -a command on that Ubuntu server I tested sending the same file to it shows this:

Code:
Linux small 2.6.27-9-server #1 SMP Thu Nov 20 22:53:41 UTC 2008 i686 GNU/Linux


Maybe on M2 you can have a newer kernal. If that's what's wrong. The Ubuntu one is on intel Mini-ITX too. But not the same modle.

I named NASlite green because it don't take a lot of power. My Ubuntu server I named small because it's on a Mini-ITX.

I hope some one will know why it's so slow in getting data. Should I just send the hole log file?

-Raymond Day
Top
 Profile

Raymond Day
PostPosted: Thu Dec 18, 2008 12:33 pm
Offline

Joined: Mon Sep 11, 2006 10:38 am
Posts: 231
Location: Belleville MI
Well I guess it don't matter any way. It take more time to fix this then me filling up the hole hard drive. At lest it sends it back fast.

It my be good to find out what's wrong if it happends to a lot of others.

-Raymond Day
